EP V100

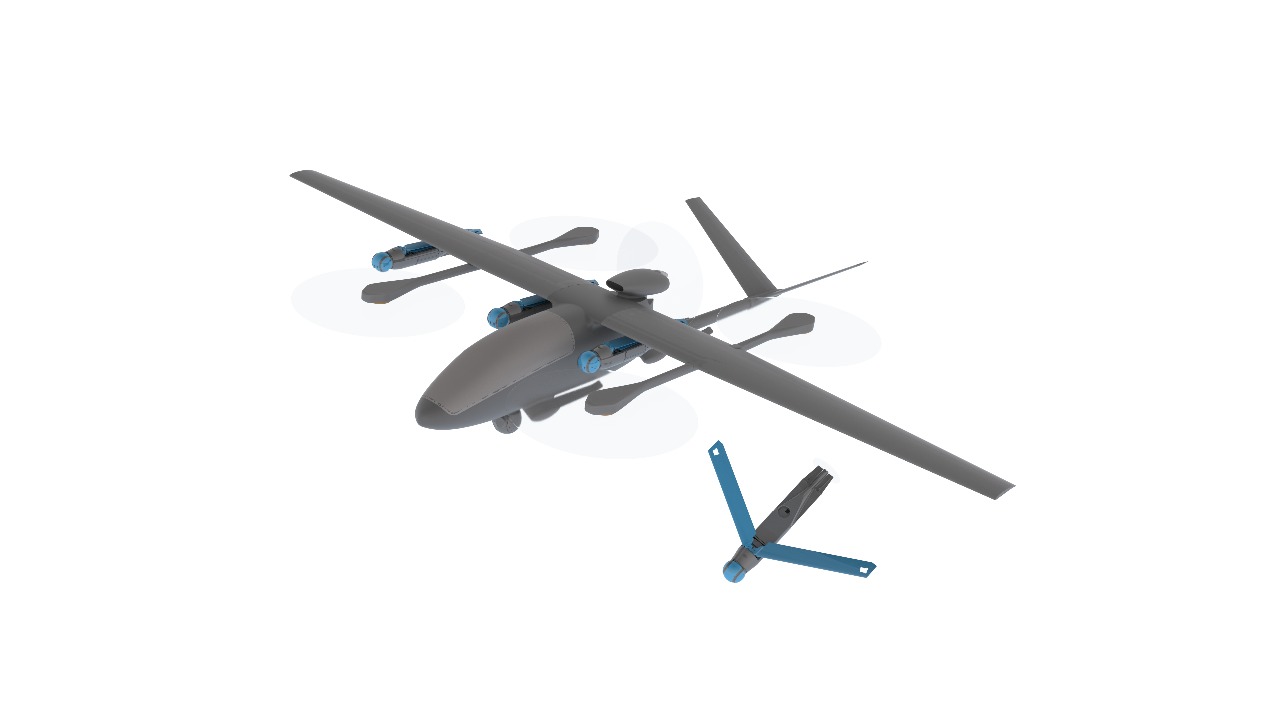

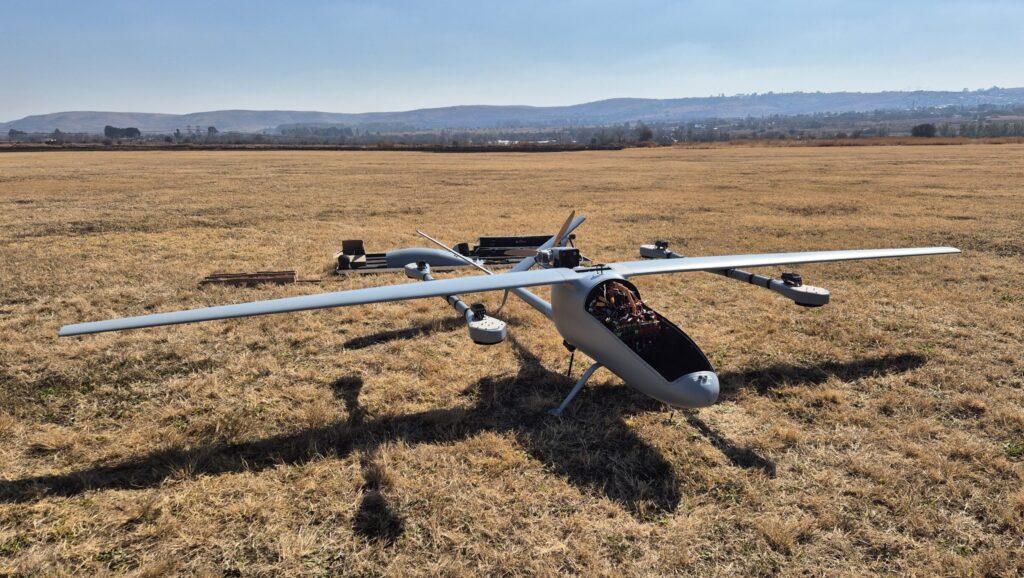

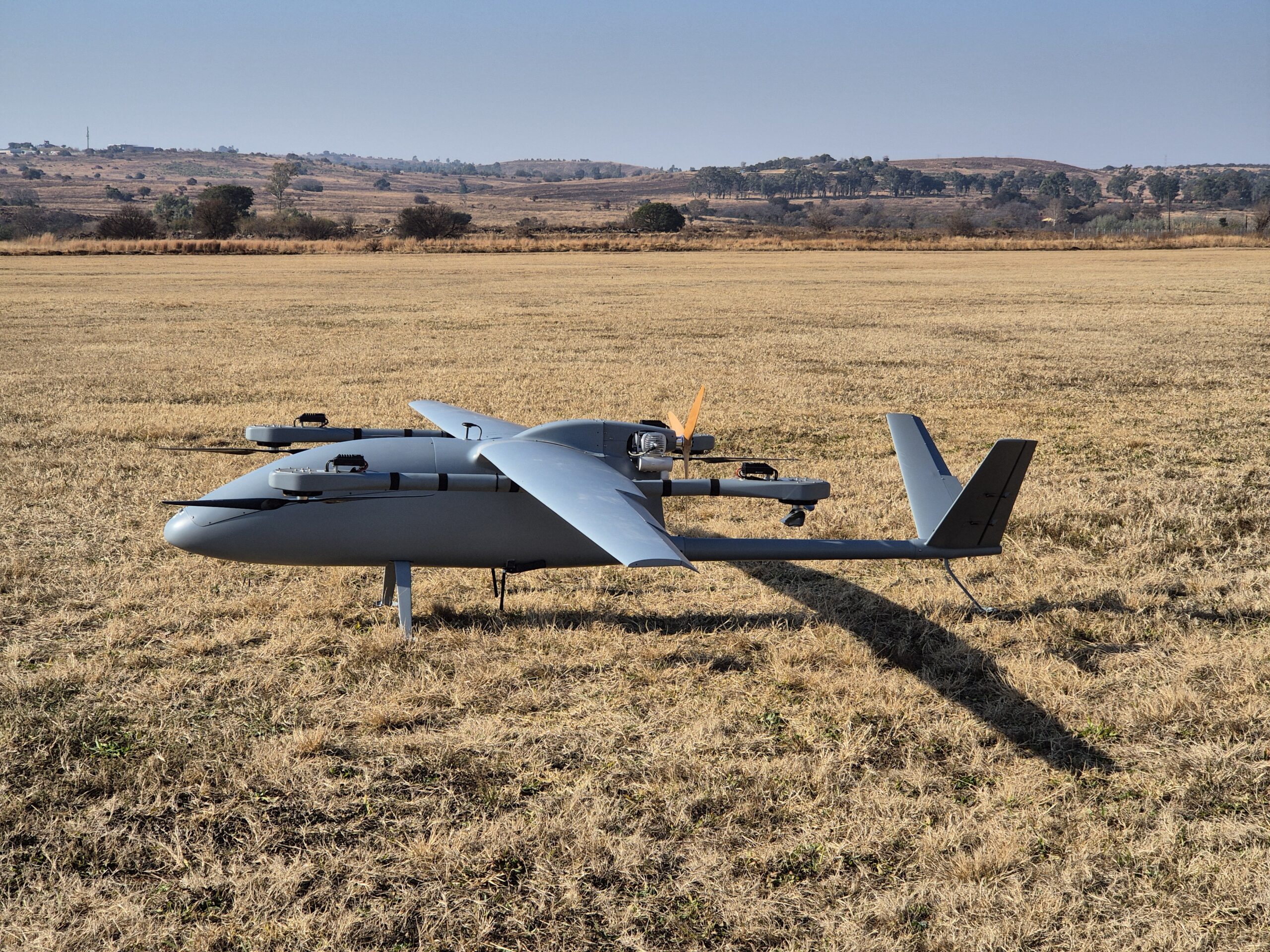

The EP V100 is a 100Kg Vertical Take Off and Land (VTOL) Aircraft with a 5,76 meters wingspan. It is fitted with a 3W-170Xi engine and four electric motors. The EP V100 cruises at 110km/h with 10hr endurance and a range of 100km Line of Sight (LOS). A SATCOM system is optional. The EP V100 has a payload capacity of 20 kg, which allows for a multiple payload configuration of sensors and weapons, to fully execute typical Intelligence, Surveillance, Target Acquisition and Reconnaissance (ISTAR) missions.
EP V100 SPECIFICATION
| Wingspan | 5,67 m |
| Length | 3,44m |
| Maximum Take-off Weight (MTOW) | 100 kg |
| Maximum Payload | 20 kg |
| Maximum Range – LOS | 100km |
| Endurance (Fixed Wing) | 10 h |
| Cruise Speed | 110 km/h |
| Stall Speed | 54 km/h |
| VNE (Velocity Never Exceed) | 216 km/h |
| Maximum Crosswind | 44 km/h |
| Service Ceiling | 15,000ft AMSL |
| VTOL Propulsion | 4x Electric motors |
| Fixed Wing Propulsion | 3W-170Xi B2 TS CS |
| VTOL Power Supply | 12S Currently 96 000 mAh LiPo Batteries |
| Avionics Power Supply | 1,300 mAh LiPo Battery |
| Fuel Tank Capacity | 50L |
| Ground Control Station (GCS) Control and Communication (C2) | 2x screens, 1x Pilot Control and 1x Payload operator in ruggedized case |
| Communication Links for 150Km LOS Extended Range with SATCOM | Silvus Radio System |
GROUND SUPPORT

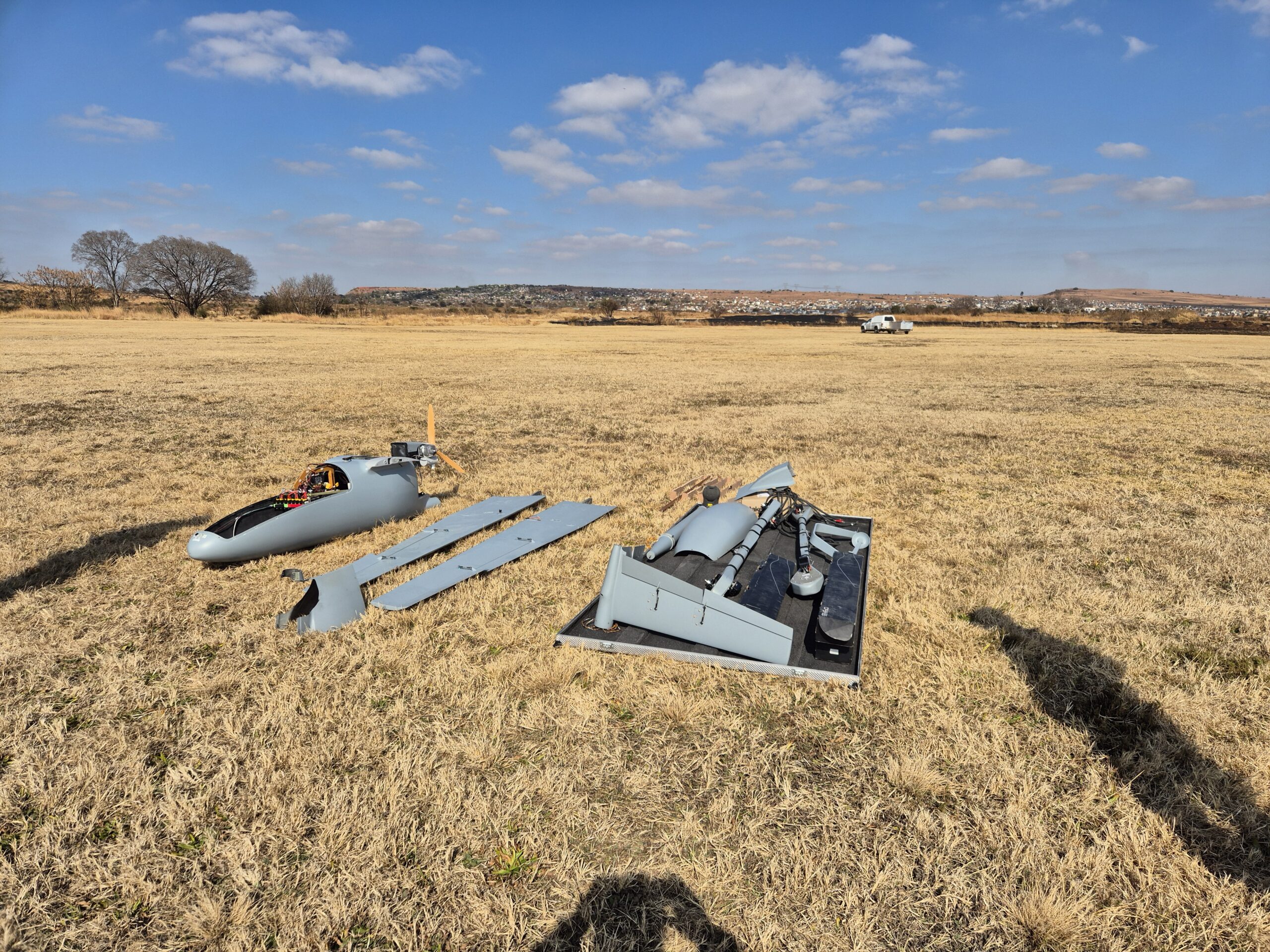

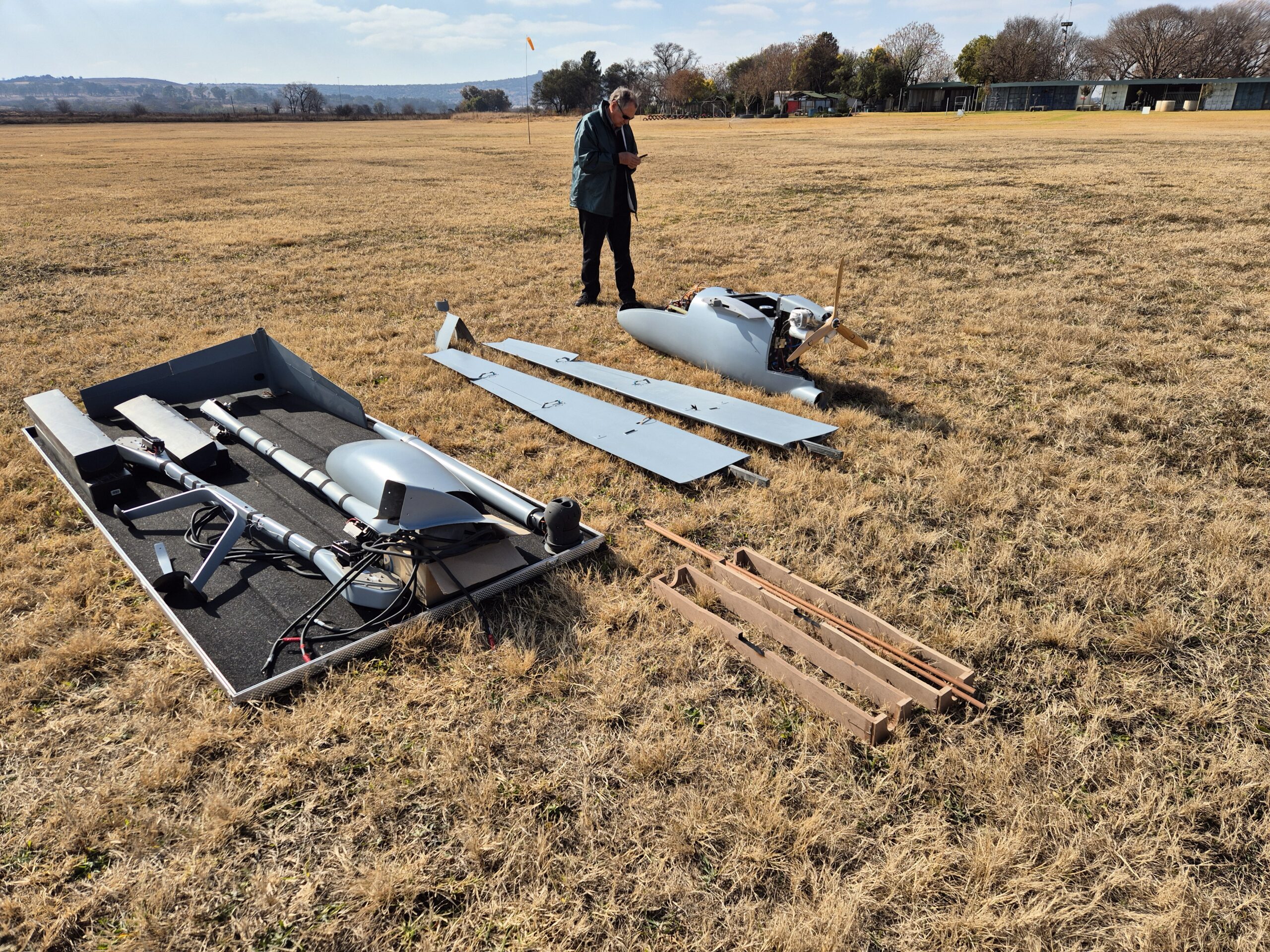

• 1x Complete Transport Case
• 1x Spare Set VTOL Propellers
• 1x Spare Set ICE Propeller
• 1x Starter Motor
• 1x Fuel Pump
• 1x Battery Charger & Battery Leads
• 1x Maintenance Kit
• 1x Tool Kit
• 2x Flight Pack – 12,000 mAh LiPo Batteries
• 2x Pump & Starter Battery
