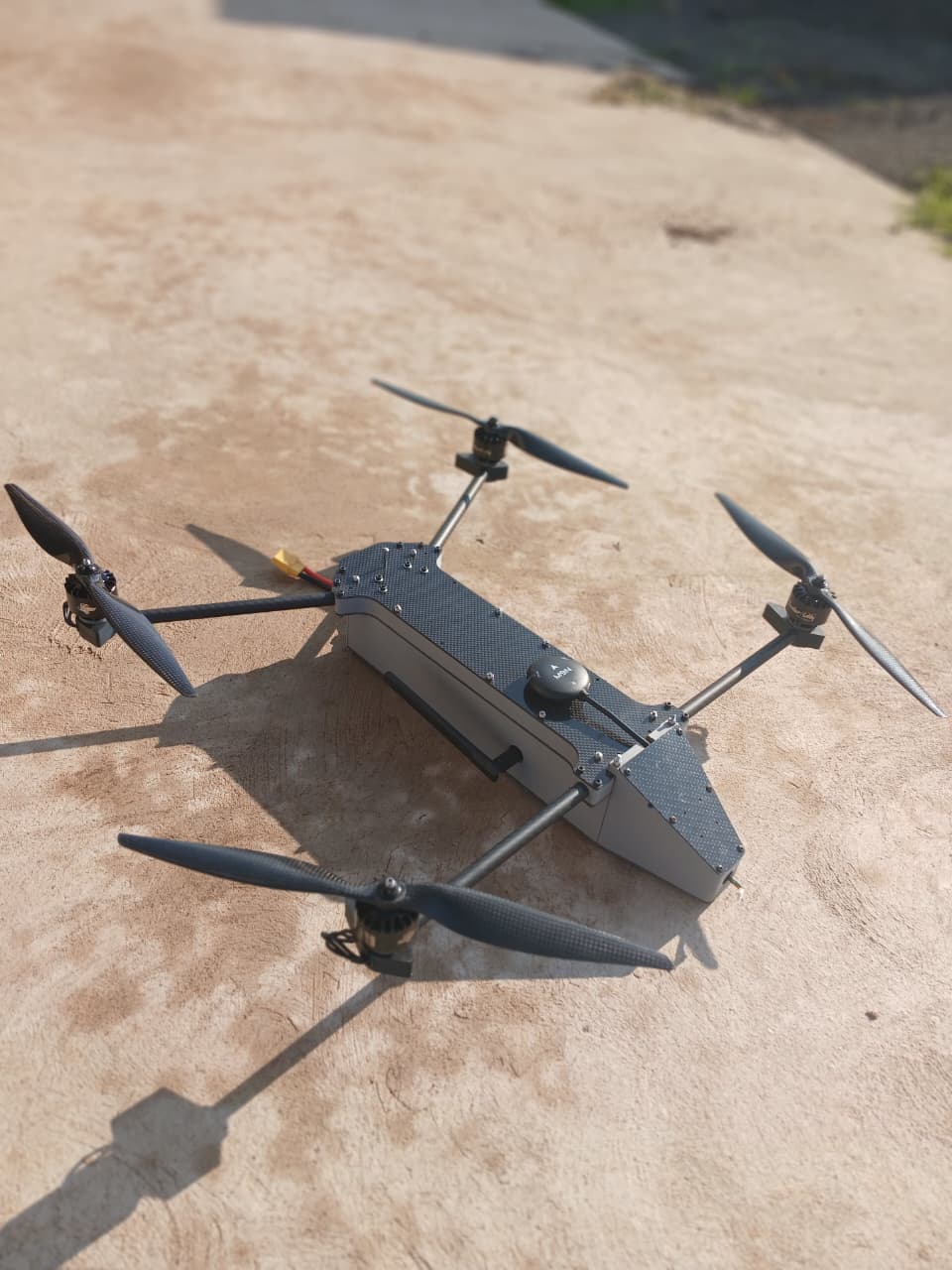

EP Q5

Designed for high-speed precision and exceptional manoeuvrability, the EP Q5 is a cutting-edge First Person View (FPV) quadcopter built to perform in all weather conditions. Its compact, rugged design slips easily into a small backpack and pairs with a sleek handheld touchscreen ground station for seamless control in the field. With a payload capacity of up to 2kg, the EP Q5 supports an Electro Optical payload for target detection, tracking, reconnaissance, and more. It’s also equipped for mission versatility with a munition dropper, top-attack explosives, dual 75mm mortar delivery systems, and high-end imaging equipment. Whether for tactical operations or advanced surveillance, the EP Q5 delivers reliable performance when and where it counts.

EP Q5 SPECIFICATION

Useful Payload 2kg
Endurance 20mins
GCS Range    13km (LOS)
Max Speed 35m/s (125km/h)
Range 35km
Operating Conditions <35km/h wind
Heavy Rain
-5 deg C to 50 deg C
Operational Modes Manual
Stabilized
Altitude Hold
Position (GPS)
Auto Take-off and land
Auto Return and land
Low Battery Auto Return
Geo-Fence Breach Auto Return
Signal loss Auto Return
Waypoint Mission

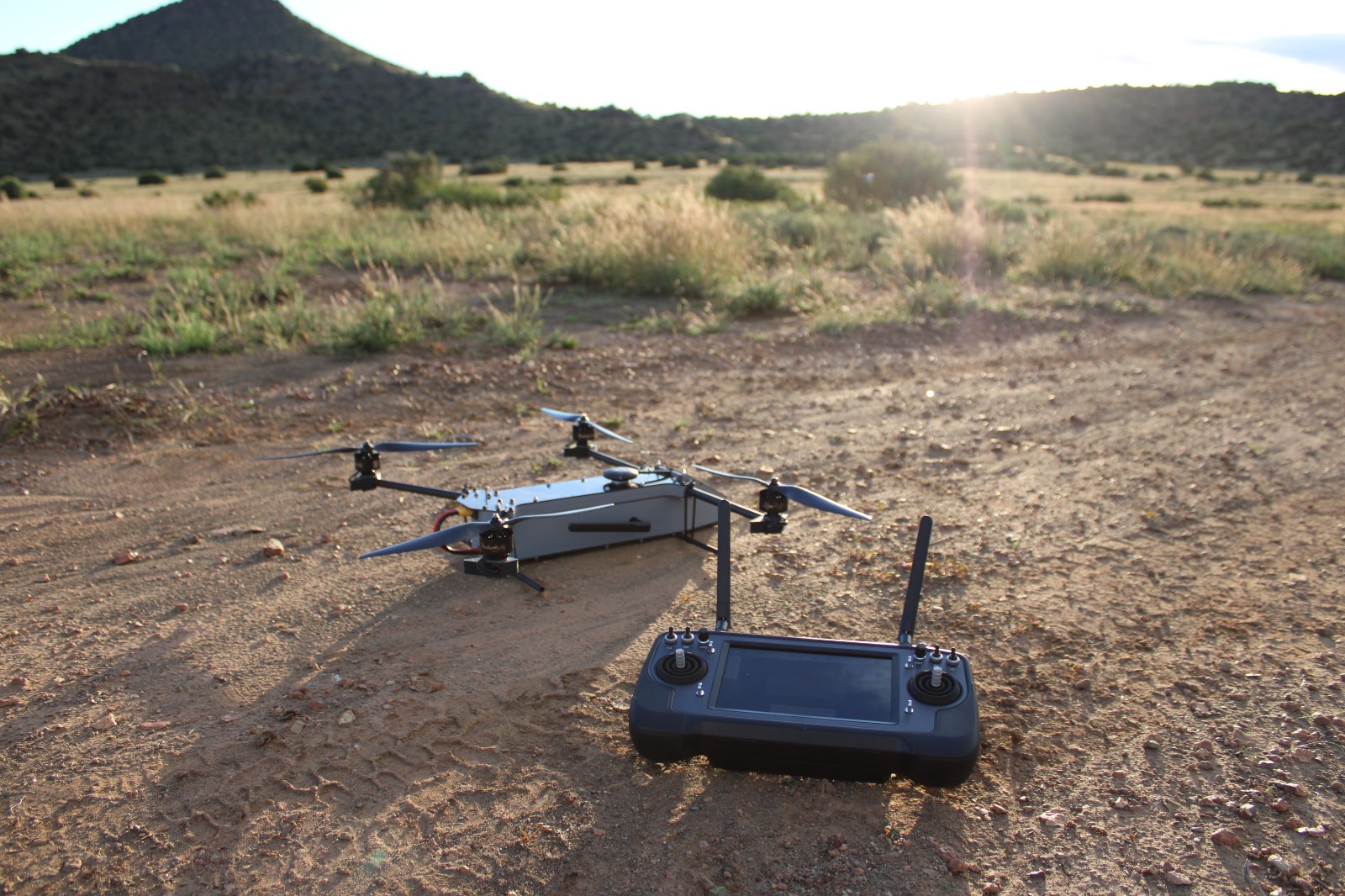

Ground Control Unit Handheld with touchscreen,
analogue control gimbals and 14
function switches
1080p 30fps live video feed with
camera gimbal control and zoom
HDMI + Wireless output for
larger screen
Strengths All weather Flying
Extreme Agility and Speed
Quick reconnaissance in uncertain
terrain
MTOW 5kg

RECOMMENDED PAYLOADS

• Electro Optical Payload for Target Detection, Tracking, Reconnaissance, etc

• Munition dropper

• Top-attack explosives.



GROUND SUPPORT EQUIPMENT


• 1x Complete Transport Case

• 1x Spare Set Propellers

• 1x Battery Charger & Battery Leads

• 1x Maintenance Kit

• 1x Tool Kit

• 2x Flight Pack – LiPo Batteries
